1) The machine can do tip-forming job for catheters made from most of plastic materials;

2) cycle time: around 2 seconds each station depending on different materials;

3) easy operation and simple maintenance;

4) controllable and stable tip-forming quality working with different molds.

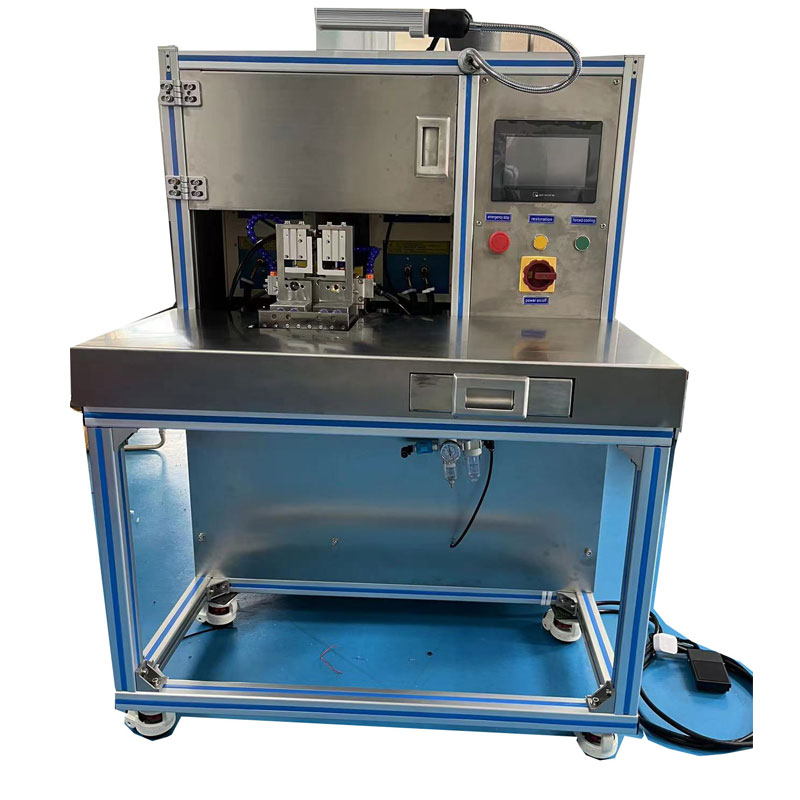

Model: TIP-02
Input voltage: AC220V ± 15%, 50 / 60Hz ± 3Hz;
Power connector: standard three wire plug
Overall power: peak value 8800W
Output display: digital power meter
Ambient temperature: 0 ~ 35 ℃;
Relative humidity: < 90%;
Cooling mode: water cooling
Control mode: PLC digital control;

Control mode: HMI / foot switch;

Size: 1*1.2*1.3m/270kg
